Description
GC50 Series Aluminum Casement Window
Product Performance Ratings
500Pa
Water Tightness Performance
4.3kPa
Wind Pressure Resistance
1.8m³/(h·㎡)
Airtightness Performance
40dB
Sound Insulation
2.0W/(m²·K)
Thermal Insulating Property
The GC50 Series is a high-performance aluminum casement window designed for modern architectural needs. Featuring a slim, 50mm flat aluminum frame, it maximizes natural light while offering superior protection against the elements, making it ideal for contemporary residential and commercial applications.
Aesthetics & Design
- Appearance: Flat Aluminum Frame for a sleek, minimalist look.
- Frame Width: Slim 50mm profile (Box Width) maximizes glass area.
- Window Type: Casement Window (standard outward or inward opening).

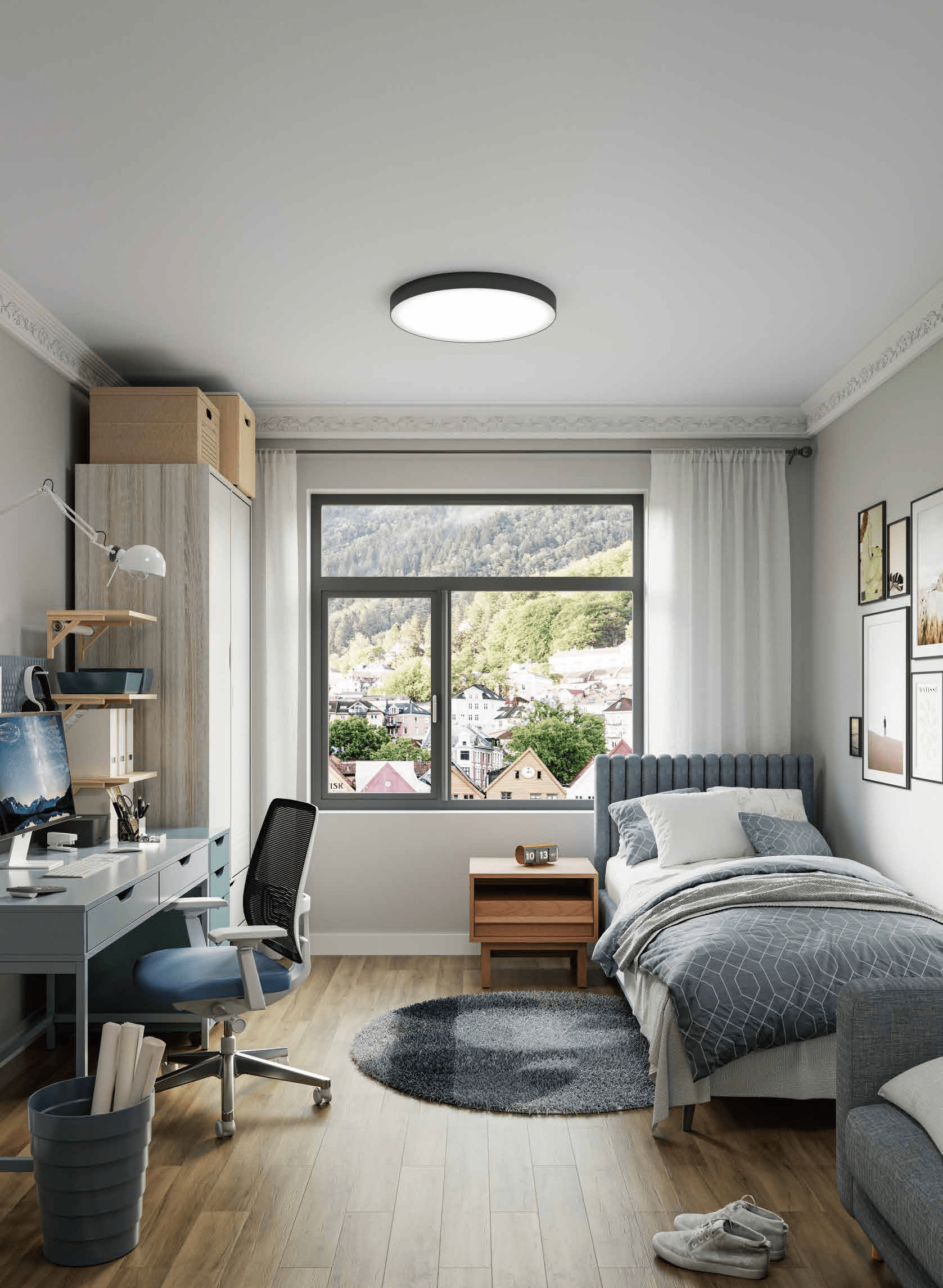

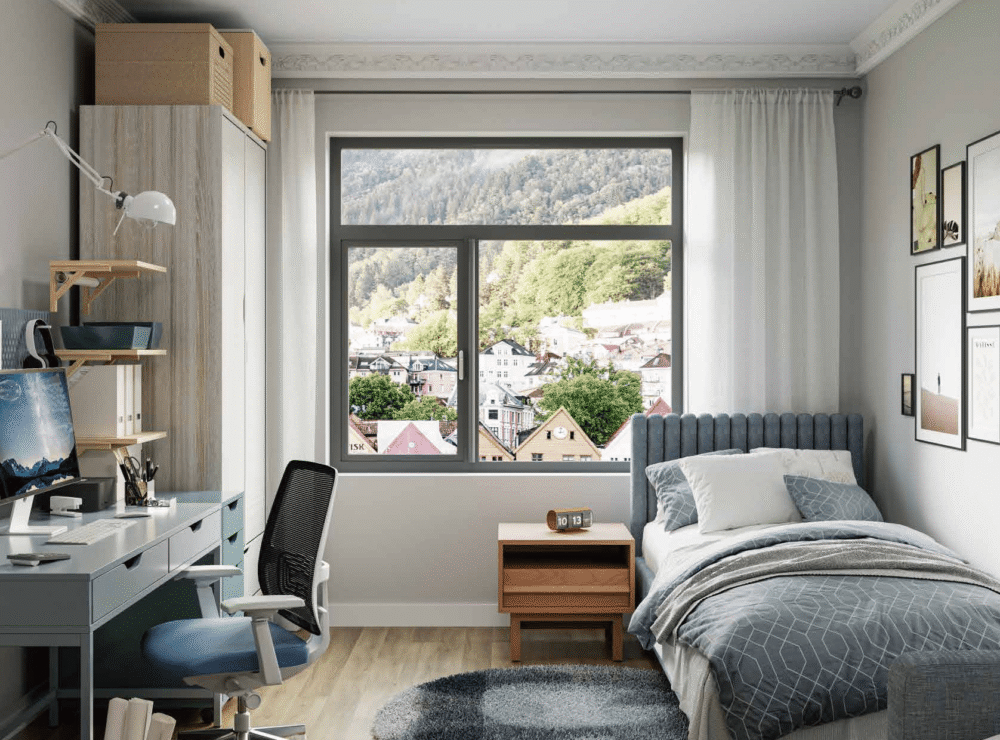

- Visual Application: Provides excellent lighting and clear, unobstructed views (as shown in the bedroom setting).
Color Options
Choose from our standard range or premium custom finishes:
Hardware & Structure
- Hardware: Standardized with Pin’ai Custom Hardware for reliable and smooth operation.
- Structure: Multi-chamber aluminum profile designed for structural integrity and enhanced insulation.
- Sealing: High-quality sealing strips and structural sealant used for glass installation and superior airtightness.
Technical Specifications
Detailed dimensional and material parameters for the GC50 Series Casement Window.
| Parameter | Specification | Notes |
|---|---|---|
| Profile Thickness | Wall thickness 1.3mm / Reinforced mullion thickness 1.4mm | Ensures structural rigidity and longevity. |
| Box Width (Frame Depth) | 50mm | |
| Single Fan Width (Min-Max) | 500mm – 800mm | Single sash area must not exceed 1m². |
| Opening Fan Height (Min-Max) | 600mm – 1800mm | |
| Glass Configuration (Standard) | Single 6mm Glass | Supports upgrade to Double Insulated Glass for improved performance. |
| Glass Installation | Secured with structural sealant. |
